Research Binoular Microscope (BM-9Bi (Haxagonal Base))

Download Catalogue Send Enquiry

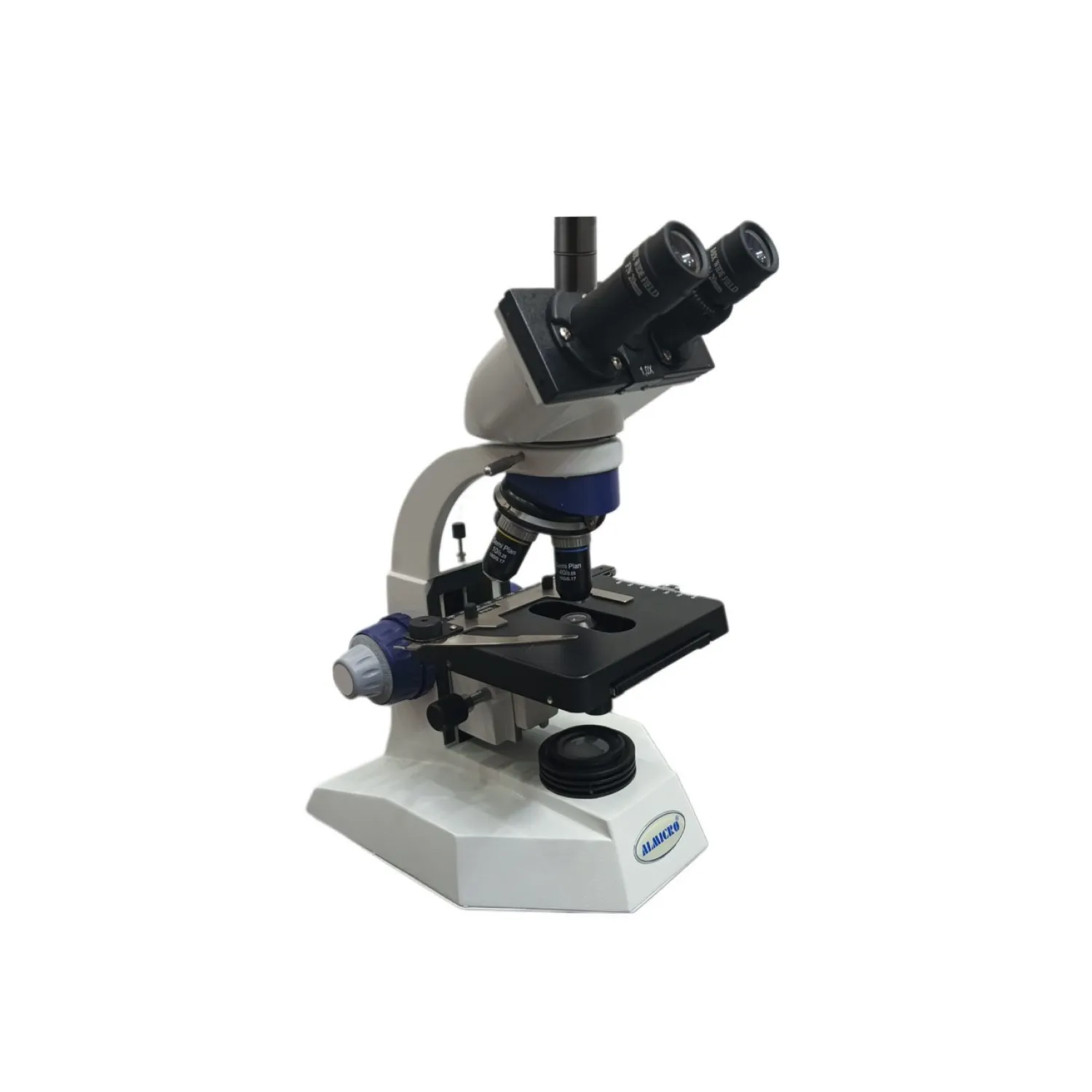

Research Binoular Microscope (BM-9Bi (Haxagonal Base))

Optical System:
Plan Infinite Strain-Free optics with antifungal treatment. Uniformly centered, interchangeable, and multi-layer coated components for enhanced durability. Microscope with parfocal and centered strain-free optics.

Body:
Aluminum die-cast body with hexagonal base. All critical movements are based on precision ball bearings and wire guides for smooth, stable operation.

Objectives (Plan Achromat, Anti-Fungus):

  • 4X / 0.10 N.A. / 18.5mm W.D.

  • 10X / 0.25 N.A. / 10.6mm W.D.

  • 20X / 0.45 N.A. / 2.4mm W.D.

  • 40X (spring loaded) / 0.65 N.A. / 0.6mm W.D.

  • 100X (oil immersion, spring loaded) / 1.25 N.A. / 0.13mm W.D.
    Uniformly centered, interchangeable, parfocal, and antifungal treated.

Observation Tube:
Binocular observation head, 30° inclined and 360° rotatable, with left eyepiece dioptre adjustment. Anti-reflection coated prisms. Factory-sealed and signed observation head.

Eyepieces:
Wide-field paired WH 10X (FN 22mm) eyepieces with adjustable height for user comfort.

Mechanical Stage:
Co-axial low drive with wire movement mechanical stage approximately 125mm × 145mm (±5mm), traverse area 50mm × 76mm (±5mm). Mechanical stage includes slide holder and focus lock. Ocular micrometer and stage micrometer (for measurement of specimen) available as optional accessories.

Focusing System:
Co-axial coarse and fine focusing controls with focus adjustment knobs.
Coarse focus range: 20mm. Fine focus sensitivity: 0.20mm per rotation.

Condenser:
Centerable condenser (N.A. 1.25) with aperture iris diaphragm, focusable with rack and pinion mechanism. Includes continuously variable iris and removable frosted glass filter for daylight observation.

Illumination:
Built-in illumination base with pre-centered 3W high-brightness LED (life >30,000 hrs) and battery backup. Constant voltage SPS circuit to prolong LED life. Universal power supply 100V–240V, 50/60Hz.

Nosepiece:
Quintuple inward revolving nosepiece mounted on precision ball-bearing mechanism with positive click stops for smooth and accurate objective positioning.

Upgradability:
Microscope upgradable to Microscopic Camera, Phase Contrast, Penta Head, and Fluorescence Attachment.

Power Requirement:
220V ±10%, 50Hz AC supply.

Accessories:
Dust cover, power cord, and immersion oil (8 ml).
